Android RK3288 Embedded ARM Board 2GB RAM WIFI BT LAN 4G LTE MINI PCIE Embedded System Board

Overview for Embedded ARM Borad:

The large board of the intelligent industrial all-in-one machine adopts the Rockchip RK3288 quad-core chip solution. Support Android5.1 and above systems. Enhanced power management circuit. Support commonly used external devices. Rich interfaces and stable performance. It is suitable for intelligent remote network control: equipment such as industrial, medical, large advertising machine, educational video terminal and so on.

Characteristic for Embedded ARM Borad:

• Support 7-inch to 84-inch various LVDS interface displays (point-to-point full HD display 1920*1080).
• Support MIPI interface display screen.
• Multiple interactive mode interfaces: capacitive touch, infrared touch, infrared remote control, USB keyboard and mouse, multi-point optical touch.
• Multiple network interfaces: Ethernet, wireless Wifi, Bluetooth, 4G (optional).
• Multi-channel USB interface, serial port.
• Strong anti-electromagnetic interference and electromagnetic compatibility.

Basic specifications for Embedded System Board:

CPU	Rockchip RK3288 Quad-core Cortex-A17 Quad-core GPU Mali-T764
Main frequency	1.8 GHz
RAM	LPDDR3 2G/4G Optional
Built-in storage capacity	EMMC 8GB/16G/32G/64G Optional
Display interface	LVDS interface (single-channel, 6-bit dual-channel, 8-bit dual-channel). Support maximum resolution 1920x1080, support 7"-84" display
	MIPI interface
Screen voltage	Support 3.3V/5V/12V optional
Touch screen	Provide I2C interface (can support multi-point resistive touch, multi-point capacitive touch). Support USB multi-point infrared touch, multi-point acoustic wave touch, multi-point optical touch.
Network	With RJ45 interface, support 10/100/1000M Ethernet.
	Equipped with Wifi&BT module, supporting Wi-Fi 802.11b/g/n protocol. Support BT5.2
	4G(Optional)
Image rotation	Support 0 degree, 90 degree, 180 degree, 270 degree manual/auto rotation, support gravity sensor function
Real Time Clock	External real-time clock power supply battery
Interface device	Support MIPI interface camera, up to 500W pixels
	4 USB HOST, 1 USB OTG (support usb camera @500W usb printer, U disk, mouse, keyboard, standard usb peripherals)
	3 groups of serial ports. Support external serial port device modules (NFC modules, printers, card readers, etc.)
	TF card, maximum support 32GB
	Class D power amplifier: 3W*2 8 ohms, support microphone
	HDMI 2.0 output
Audio	MP3,WMA,WAV, APE, FLAC, AAC, OGG,M4A,3GPP format
Video	Support H.264, MPEG2, VP6, VP8, MVC and other video formats 2160P@24FPS decoding. YouTube and other online videos, up to 4K, HTML5 video playback, Flash 10.1 playback
Picture	Support JPG, BMP, PNG and other image format browsing and support rotation/slide show/picture zoom function
Power Adapter	Input: AC100-240V.50-60HZ, output: DC12V 3A

Operating system	Android 5.1 and above
Basic software functions	Web browsing, web chat, email, e-book, resource manager
Sound effect mode	Clock, alarm clock, calculator, recording
Language support	Multi-lingual
Recording	Support MP3, WMA format recording
Tools	Calendar
	Alarm Clock
	Calculator
	Note
	Weather + clock
	Recording
Word processing	EPUB, WORD, EXCEL, POWERPOINT, PDF, TXT
Ebook	PDF/TXT/CHM/DOC/EXCEL/EPUB/RTF/FB2
Schedule	Calendar
Input	Standard Andriod keyboard, optional third-party input method (Chinese, Korean, Japanese, etc.)
Network	Browser -ChromeLite
	GOOGLE Market
	Email
	Gmail
	Google talk
System Management	Support OTA remote upgrade, U disk upgrade, SD upgrade (silent installation)
	Original ecological Android system, open root permission, can carry out product customization development
	Support three-screen display at the same time output
	Customizable local or remote server management system
	Support a variety of third-party Android remote advertising publishing systems
	Support multiple serial devices, USB devices, IO control devices
	Support dual-screen different display

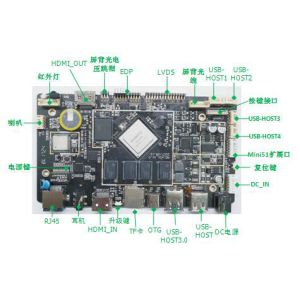

Pictures for Embedded ARM Borad:
