Shenzhen Sunchip Technology Co., Ltd. We are specializing in LCD AD Players, LCD digital signage and customized PCBA products used in commercial and industrial environments.
7 Years
| Ask Lasest Price | |
| Brand Name : | Sunchip |
| Model Number : | AD-Z33 |
| Certification : | ISO 90001, ISO 27001 |
| Price : | Negotiation |
| Delivery Time : | 2-5days |
| Payment Terms : | T/T, Western Union, PayPal |
| Supply Ability : | 600000/Month |
Model NO.: AD-Z33
Sunchip-RK3288 High-Performance Platform
Sunchip-RK3288 is an all-in-one high-performance multi-core computing platform.
It features powerful graphics processing and video decoding ability,
and support for Android 7-10 OS.
It will become extra ordinary with your creativity.

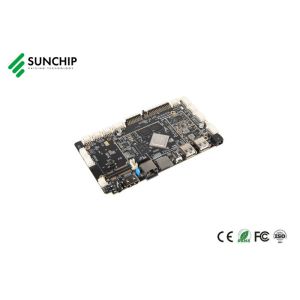

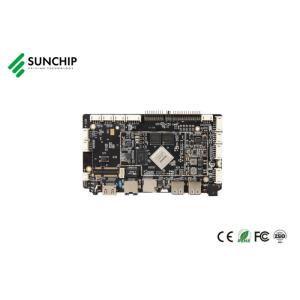

Quad-Core High-Performance Board
Uses RK3288 quad-core Cortex-A17processor, supports 4K hardware decoding, has a rich expansion interface, as well as compatible with mainstream displays. It adopts the immersion gold process and has passed various pressure tests, which can be applied to the product directly.
RK3288 development board is an all-in-one high performance multi-core computing platform. Based on the Rockchip RK3288 SoC featuring an Arm Cortex-A17 (MP4) and Arm Mali-T760 (MP4), it features powerful graphics processing and video decoding ability, and support for Android OS.
About Software:
| Operating system | Android 5.1 and above |
| Basic software functions | Web browsing, web chat, email, e-books, explorer |
| Sound mode | Clock, Alarm, Calculator, Recording |
| Language support | multi-language |
| Recording | Support MP3,WMA format recording |
| Tool | Calendar |
| Alarm Clock | |
| calculator | |
| note | |
| weather + clock | |
| recording | |
| Document processing | EPUB, WORD, EXCEL, POWERPOINT, PDF, TXT |
| E-book | PDF/TXT/CHM/DOC/EXCEL/EPUB/RTF/FB2 |
| Schedule | calendar |
| Input method | Standard Android keyboard, optional third-party input method (Chinese, Korean, Japanese, etc.) |
| Internet | Browser -Chrome Lite |
| GOOGLE Market | |
| Gmail | |
| Google talk | |
| System Management | Support OTA remote upgrade, U disk upgrade, SD upgrade (silent installation) |
| The original ecological Android system, open root permissions, can be customized for product development | |
| Customizable local or remote server management system | |
| Support a variety of third-party Android remote advertising publishing systems | |
| Support multi-channel serial devices, USB devices, IO control devices |
About hardware:
| CPU | Rockchip RK3288 Quad-Core Cortex-A17 Quad-Core GPU Mali-T764 |
| Frequency | 1.8 GHz |
| RAM | LPDDR3 2G/4G optional |
| Built-in storage capacity | EMMC 8GB/16G/32G/64G optional |
| Display interface | LVDS interface (single, 6-bit dual, 8-bit dual). Support maximum resolution 1920x1080, support 7"-84" display |
| EDP port | |
| Backlight Voltage | Support 3.3V / 5V / 12V optional |
| Touch screen | Provides I2C interface (can support multi-point resistance touch, multi-point capacitive touch). Support USB multi-point infrared touch, multi-point sound wave touch, multi-point optical touch. |
| Internet | With RJ45 interface, support Ethernet. |
| With WIFI & BT module, support Wi-Fi 802.11b / g / n protocol. Support BT4.0 | |
| Image rotation | Support 0 degrees, 90 degrees, 180 degrees, 270 degrees manual / automatic rotation, support gravity sensing function |
Real Time Clock | Built-in real-time clock powered battery |
| Interface device | Support MIPI interface camera, up to 500W pixels |
| 4 USB HOST, 1 USB OTG (support USB camera@500W USB printer, U disk, mouse, keyboard, standard USB peripherals) | |
| 3 sets of serial ports. Support external serial device modules (NFC modules, printers, card readers, etc.) | |
| TF card, maximum support 32GB | |
| Class D amplifier: 3W*2 8 ohms, support microphone | |
| HDMI 2.0 output | |
| Audio | MP3, WMA, WAV, APE, FLAC, AAC, OGG, M4A,3GPP format |
| Video | Support H.264, VP8, RV, WMV, AVS, H.263, MPEG4 and other video formats 1080P decoding, YouTube and other online video, up to 1080P, HTML5 video playback, Flash10.1 play |
| Picture | Support JPG, BMP, PNG and other picture formats to browse and support the rotation / slide show / picture zoom |
| Power Adapter | Input:AC100-240V.50-60HZ, Output: DC12V 3A |
Restaurant Digital Menu Boards, Retail shop - Digital Menu Boards, Retail Digital Signage,
Hotel Digital Signage, HealthCare Digital Signage,
Hotel catering, Advertising machine, Bank & Finance machine, School & Education product, Transportation product, Face recognition machine, electronic whiteboard, POS payment terminal, POS machine, Hospital self-service terminal, Commercial tablet, Smart evaluation machine,
Smart access control, Car entertainment machine, Super mall, Supermarket, Industrial control
Multi-screen display, multi-media query machine, Convenient store, Restaurant, Railway station, Airport.
Available Customization that from Sunchip:
Regarding software:
1. Booting logo/animation
2. Model number of the Android System
3. Build number of the Android System
4. Pre-install APK
5. Delete APK
6. Set defaulted time zone
7. Set defaulted language
8. Virtual Keyboard (the current defaulted is English Keyboard)
9. Other requirements etc.
Regarding hardware: ODM layout
……More customization is waiting for your checking.
1, More than 10 years of PCBA design and production experience.
2, A R&D team of more than 80 people, including hardware engineers (layout, debugging) and software engineers (drivers, kernels, testing, apk engineers).
ID Design engineer, Mechanical Design engineer, -> Support OEM/ODM.
3, Team of more than 160 people.
4, One-stop service: PCB design, prototype, production, PCBA SMT, testing, shell design, assembly, software customization, QC control, after-sales.
5, Got ISO9001 factory certification.
6, More than 3500 square meters of office and factory area
Q: Can I have firmware OTA update?
A: Yes, USB OTA or Online OTA.
Q: How about the packing list for the android motherboard?
A: Based on different board style,60pcs or 90pcs/carton.
Q: Can you open the ROOT?
A: Yes.
Q: Can the OTG USB-A be USB-C?
A: Yes.
Q: Can I replace the booting LOGO by myself?
A: Yes, you can do it by ADB command, but we also can help you to add it to the system and finally generate a new firmware.
Our main products:
-Android embedded motherboard
-4K/8K player box of media or industrial
-Different kinds of AIO lcd digital signage display machine
Let me know if any interest, will be happy to show you more details by return. thanks!
